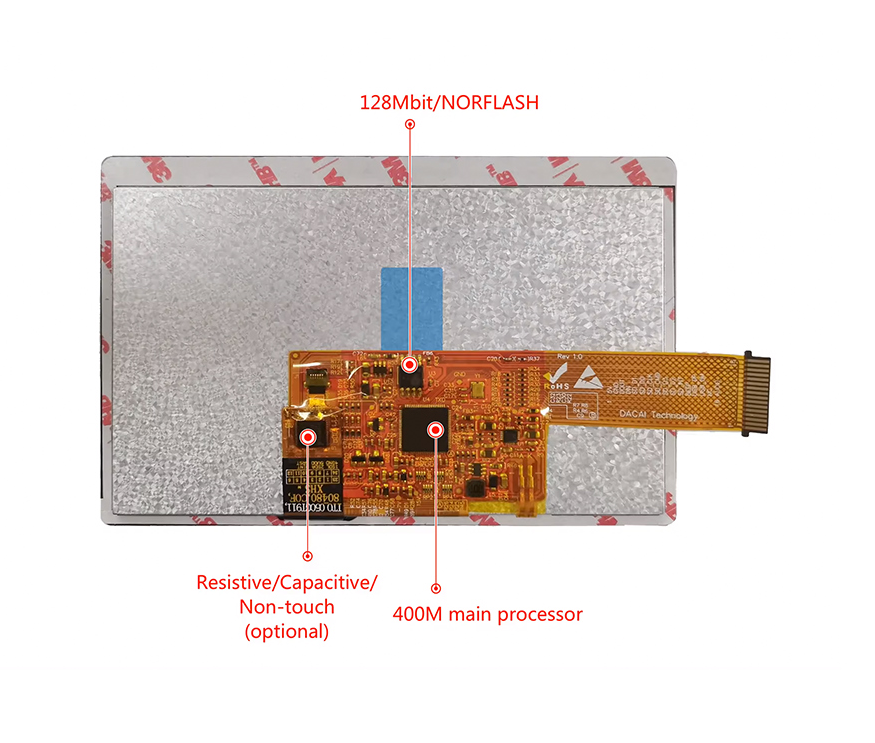

The CD050CFM80480T-01 is a 5.0-inch high-resolution TFT LCD module that supports 800x480 pixels and features a COF (Chip On Film) structure for a slim and space-efficient design. Utilizing an IPS or TN panel (optional), it delivers excellent visibility and accurate color reproduction from wide viewing angles. Its integrated UART interface ensures compatibility with various industrial systems and embedded platforms. With optional capacitive or resistive touch input, it is ideal for HMI applications that require intuitive interaction. Its low power consumption and high durability make it suitable for use in industrial monitors, medical displays, and control panels. The module can also be customized to meet specific project requirements, offering flexibility and scalability in B2B deployments.

5.0" TFT LCD with 800x480 resolution

COF design for ultra-slim and robust structure

Wide viewing angle with IPS or TN panel (optional)

Capacitive or resistive touchscreen option

UART serial communication interface

High brightness (up to 500cd/m²), low power design

Ideal for industrial HMI, medical devices, control systems

Model: CD050CFM80480T-01

Size: 5.0 inch

Resolution: 800(RGB) x 480

Display Type: TFT LCD (IPS/TN optional)

Brightness: 300~500cd/m² (depending on configuration)

Interface: UART

Touch Option: Capacitive / Resistive (Optional)

Operating Temperature: -20℃ ~ +70℃

Structure: COF (Chip On Film)

Applications: Industrial monitors, smart HMI, medical display, embedded systems
