- Optinized for flatness, parallelism and dimension accuracy work

- 2 times higher efficiency than general plain grinder

- Minimization of worker's fatigue degree by maximizing work convenience through ergonomic structure and various switch arrangement.

- Ball screw used in this machine is high-precision, fixation and durability to pursue excellent transportation.

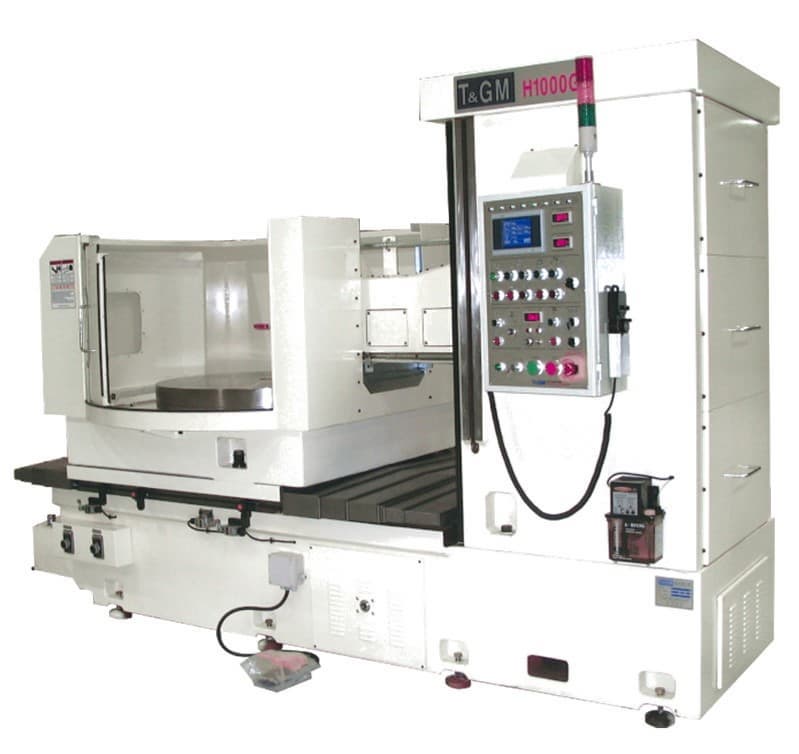

- Name of Machine : Horizontal Rotary Surface Grinders

- Model : H1000

- Brand name : T&GM

- Origin : Korea

- Optinized for flatness, parallelism and dimension accuracy work

- 2 times higher efficiency than general plain grinder

- Minimization of worker's fatigue degree by maximizing work convenience through ergonomic structure and various switch arrangement.

- Ball screw used in this machine is high-precision, fixation and durability to pursue excellent transportation.

- can be used in below companies.

  automobile parts producing and supplying company.(1st vendor)

  motorcycle and parts producing company

  electric home appliances and parts producing company

  air conditioner and parts producing company

  machine parts producing and selling company

* Capacity :

     Swing - in Splash  guard :

        H1000 : 1100 mm

        H800 :     900 mm

        H600 :     700 mm

        H500 :     600 mm

        H400 :     500 mm

     Vertical range :

        H1000 :

        H800 :     320 mm

        H600 :     230 mm

        H500 :     210 mm

        H400 :     130 mm

     Vertical range of wheel head :

        H1000 :   350mm

        H800 :     350mm

        H600 :     180mm

        H500 :     180mm

        H400 :     180mm

* Magnetic Table :

     Diameter :

        H1000 :   1,000mm

        H800 :       800mm

        H600 :       600mm

        H500 :       510mm

        H400 :       400mm

      Rotation :

        H1000 :

        H800 :       Max 60   rpm

        H600 :       Max 90   rpm

        H500 :       Max 90   rpm

        H400 :       Max 120 rpm

      Manual feed :     0.002 ~ 0.2 mm

      Automatic feed : 0.002 ~ 0.2 mm

      Rapid traverse rate : 300 mm/min

* Grinding wheel :

     Size :

        H1000 :  pie455 x 50 x pie203.2  mm

        H800 :    pie455 x 50 x pie203.2  mm

        H600 :    pie355 x 45 x pie127.2  mm

        H500 :    pie355 x 45 x pie127.2  mm

        H400 :    pie355 x 45 x pie127.2  mm

     Rotation speed :

        H1000 :

        H800 :       1,250 rpm

        H600 :       1,320 rpm

        H500 :       1,530 rpm

        H400 :       1,530 rpm

        H800 :       500 mm

        H600 :       450 mm

        H500 :       350 mm

        H400 :       250 mm

     Traverse rate : 50 ~ 2,000mm/min

* Motor :

     Grinding wheel :

        H1000 :     1.1Kw x 4P

        H800 :       1.1Kw x 4P

        H600 :       5.5Kw x 4P

        H500 :       5.5Kw x 4P

        H400 :       5.5Kw x 4P

     Hydraulic unit : 2.2 Kw

     Vertical traverse :

        H1000 :     AC SEROV 1.5 kw

        H800 :       AC SEROV 1.5 kw

        H600 :       AC SEROV 1.0 kw

        H500 :       AC SEROV 1.0 kw

        H400 :       AC SEROV 0.5 kw

     Table rotation motor :

        H1000 :     3.7 kw

        H800 :       2.2 kw

        H600 :       1.5 kw

        H500 :       0.75 kw

        H400 :       0.4 kw

        H800 :       0.4 kw

        H600 :       0.25 kw

        H500 :       0.25 kw

        H400 :       0.25 kw
